Headlamp Assembly Overview, 100 And A6

WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.

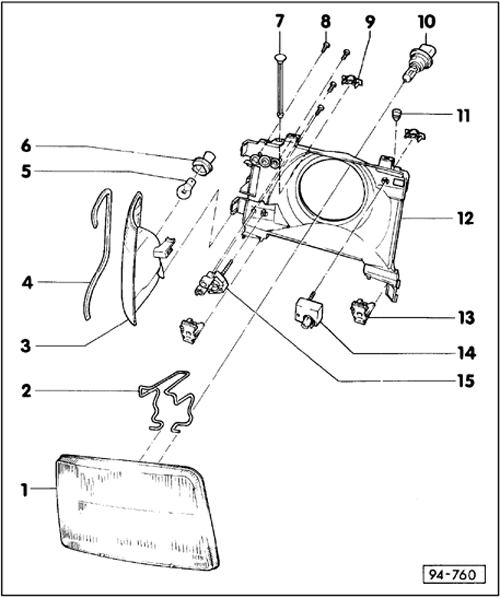

GWWUS94-760Courtesy of AUDI OF AMERICA, LLC
  1. Headlamp lens assembly
  2. Bulb bracket
  3. Turn signal and parking light lens

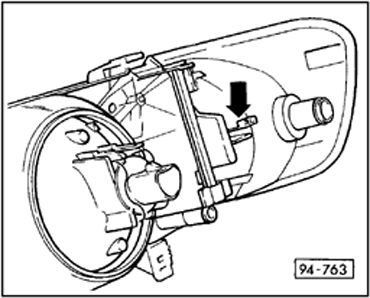

    • Removing and installing Figure
  4. Rubber seal
  5. Turn signal, parking light bulb
  6. Turn signal, parking light bulb socket
  7. Adjustment pin
  8. Screw
  9. Clip
  10. High/low beam bulb
    • 12 volts, 60/55 watts
  11. Adjustment pin
  12. Headlamp housing
  13. Mounting bracket
  14. Headlamp adjuster
    • Side to side
  15. Headlamp adjuster
    • Up and down
