Antilock Brake System Components, BOSCH 5

Installation position: below rear seat, left side

-- Switch ignition off.

-- Remove rear seat.

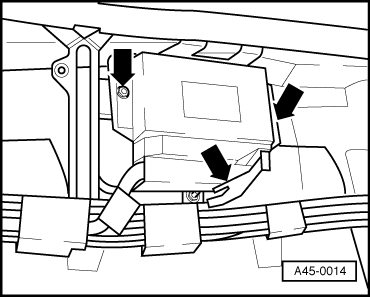

-- Release harness connector (lower arrow) and disconnect from ABS Control Module (w/EDL) -J104-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove both securing screws (upper arrows).

Installation is the reverse of removal.

-- Switch ignition off when installing and connecting ABS control module.
