Parking Brake, Adjusting

WARNING:

Always check brake basic adjustment first REAR BRAKES, ADJUSTING, 100 AND A6 .

NOTE:

As a rule, parking brake adjustment is not necessary because of the automatic rear brake adjustment. Adjustment is required only when replacing parking brake cables, brake calipers or pull rod.

-- Loosen adjusting nut for parking brake cable until both levers contact stop

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Install 10 mm deepwell socket on adjusting nut, then install flexible extension on socket and ratchet.

-- Turn adjusting nut until both levers lift off stop (two technicians required).

Courtesy of AUDI OF AMERICA, LLC

-- Turn adjusting nut back two turns.

Inspection

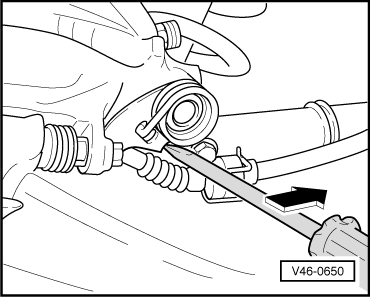

-- Using a screwdriver, alternately press lever for parking brake cable

Courtesy of AUDI OF AMERICA, LLC

-- against stop (arrow)

Courtesy of AUDI OF AMERICA, LLC

If the lever of the opposite brake caliper is pulled away from the stop, the parking brake cable is too tight.

-- Loosen adjusting nut for parking brake cable until both levers lie on stop.

NOTE:

The stop is shown on a brake caliper that has been removed.

-- Engage parking brake and then release again.

-- Check whether both wheels turn freely; if necessary check ease of movement in parking brake operation.
