Fig. 1 Removing piston from brake caliper housing

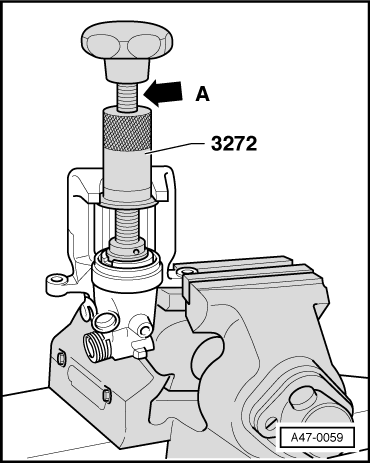

Fig 1: Turning Piston Into Brake Caliper Housing
GWWA47-0059Courtesy of AUDI OF AMERICA, LLC

-- Unscrew piston by turning threaded spindle counterclockwise, and simultaneously turning knurled wheel clockwise.

NOTE:

If piston does not move easily, a 13 mm open-end wrench can be used on the flats provided (arrow -A-).
