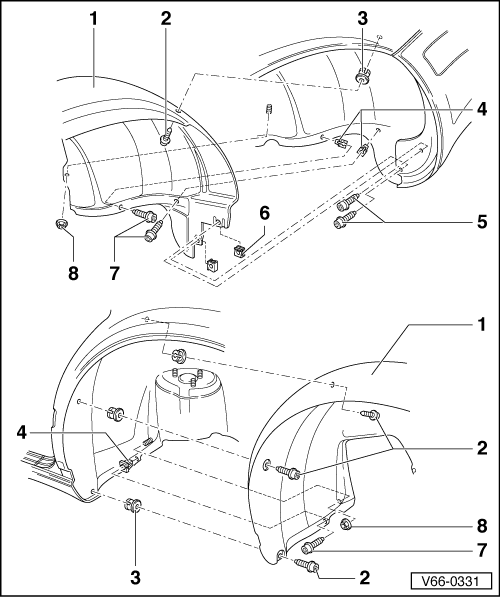

Rear Wheel Housing Liner Assembly Overview
- Rear Wheel Housing Liner
Removing:
-- Remove bolts and nuts.
-- Pull liner from rear bumper and wheel housing and remove.
Installing:
-- Install all components in reverse order of removal
- Bolts
- 3.0 Nm (37 in lb)
- Self-tapping
- Body-Bound Rivet
- Push-in Nut
- Bolts
- 3.0 Nm (37 in lb)
- Self-tapping
- Speed Nut
- Bolt
- 2.0 Nm (18 in lb)
- Self-tapping
- Clip Nut
