Rear Axle Toe, Adjusting

Check toe adjustment on left and right sides with optical axle measuring device.

NOTE:

Before adjusting toe, check the camber adjustment carefully, and adjust if necessary.

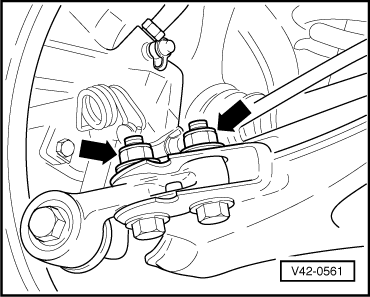

-- Loosen nuts on pivot mount.

Courtesy of AUDI OF AMERICA, LLC

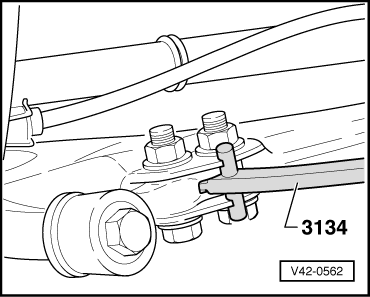

-- Install special tool Adjusting Lever -Rear Toe:3134

-- Adjust by sliding pivot mount in trapezoidal arm as necessary.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten nuts at pivot mount.

-- Check camber, adjust if necessary.
