Rear Axle Camber, Adjusting

Check camber adjustment on left and right sides with optical axle measuring device.

-- Loosen lock nuts.

Graphic not available on website.

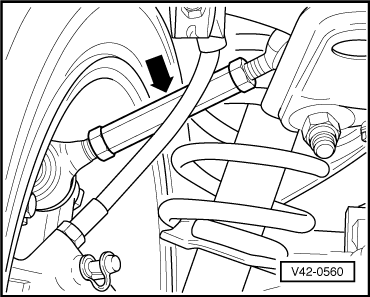

-- Adjust by turning threaded sleeve as necessary to achieve specified camber value.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten lock nuts.

-- Check toe, adjust if necessary.
