Wheel Bearing Housing: Removing

-- On vehicles with alloy wheels, pull cover off with special tool : 3208  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt and washer assembly (only with vehicle standing on wheels).

-- Remove wheel.

-- Remove brake caliper (arrow) and tie up to body with wire.

Courtesy of AUDI OF AMERICA, LLC

-- Remove brake disc.

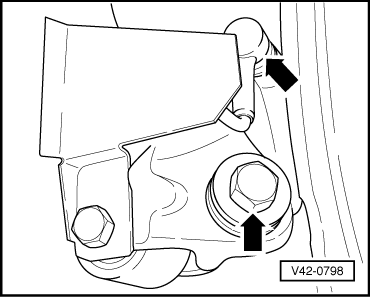

-- Remove wheel bearing housing from trapezoidal arm (lower arrow).

Courtesy of AUDI OF AMERICA, LLC

-- Remove wheel speed sensor from wheel bearing housing (upper arrow).

-- Remove wheel bearing housing from support (arrow).

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect lower suspension strut mount (arrow).

Courtesy of AUDI OF AMERICA, LLC

-- Remove mounting bolt.

-- For rear axle with stabilizer bar, remove stabilizer bar link rod bracket.

-- Remove transverse link from wheel bearing housing.

Courtesy of AUDI OF AMERICA, LLC

-- Pull wheel bearing housing off driveshaft.
