Trapezoidal Arm: Removing

-- Remove wheel.

-- Remove wiring guide for ABS wheel speed sensor.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

When installing and tightening the bolts for the wiring guide, do not pinch the ABS wheel speed sensor wire between the guide and the trapezoidal arm.

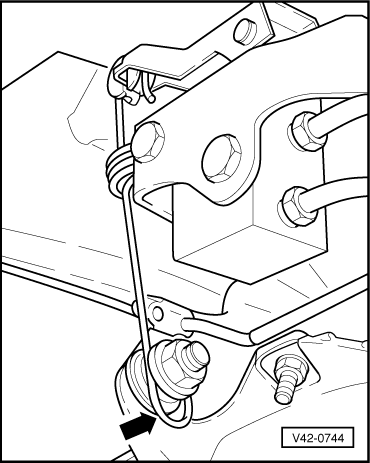

-- Disconnect spring for brake pressure regulator

Courtesy of AUDI OF AMERICA, LLC

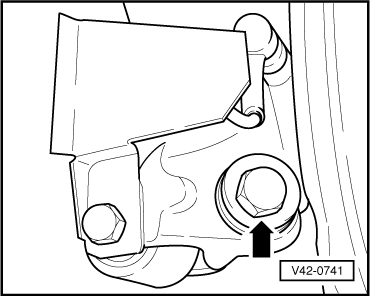

-- Loosen bolt attaching trapezoidal arm to wheel bearing housing (arrow).

Courtesy of AUDI OF AMERICA, LLC

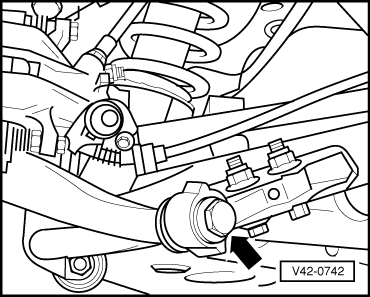

-- Loosen bolt attaching pivot mount to trapezoidal arm (arrow).

Courtesy of AUDI OF AMERICA, LLC

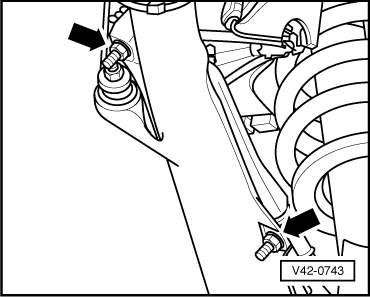

-- Loosen bolt attaching trapezoidal arm to crossmember.

-- Loosen bolt attaching support to trapezoidal arm.

Courtesy of AUDI OF AMERICA, LLC

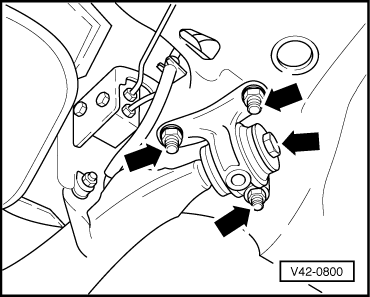

-- Disconnect support from body (arrows).

-- Remove bolt attaching support to trapezoidal arm.

-- Remove bolt attaching pivot mount to wheel bearing housing.

-- Remove bolt attaching trapezoidal arm to wheel bearing housing.

-- Remove bolt attaching trapezoidal arm to crossmember, and remove trapezoidal arm.
