Stabilizer Bar: Notes

Stabilizer bar to crossmember

NOTE:

Do not attempt to weld or straighten rear wheel suspension components.

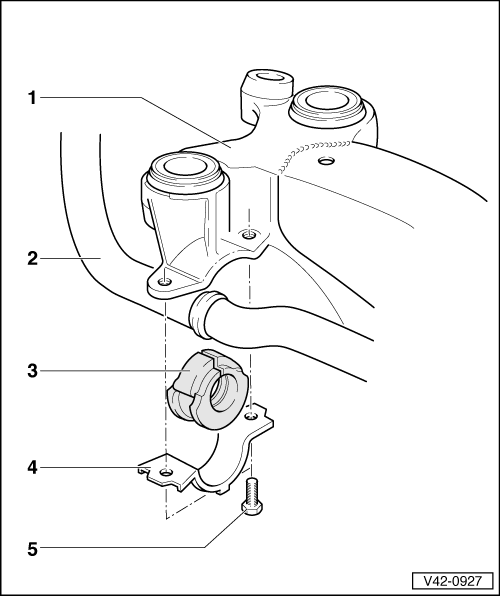

Fig 1: Stabilizer Bar Overview
GWWV42-0927Courtesy of AUDI OF AMERICA, LLC
  1. Rear crossmember
    • Note different versions
  2. Rear stabilizer bar
  3. Bushing
  4. Clamp
  5. Bolt
    • 25 Nm (18 ft lb)
