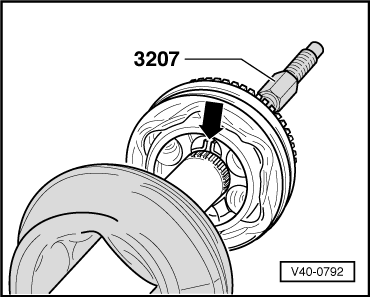

Fig. 4 Pressing off outer CV joint

Fig 1: Pressing Off Outer CV Joint

Courtesy of AUDI OF AMERICA, LLC

-- Clamp driveshaft in vice using protective jaws.

-- Remove boot clamp.

-- Push back CV joint boot.

-- Turn in M16 threaded end of special tool : 3207  until CV joint is pressed off splined shaft
