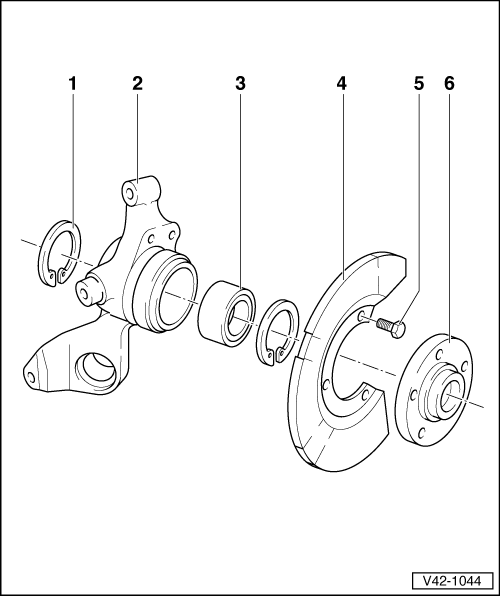

Wheel Bearing Overview: Notes
- Circlip
- Install in wheel bearing housing; make sure circlip is correctly seated
- Split points downward
- Wheel bearing housing
- Removing and installing WHEEL BEARING HOUSING
- Wheel bearing
- Inner diameter has shoulder
- Larger inner diameter points toward wheel hub
- Pressing in and out Fig. 1 Pressing wheel bearing in and out
- Pulling off bearing inner race Fig. 2 Pulling off bearing inner race
- Cover plate
- Bolt onto wheel bearing housing
- Bolt
- 10 Nm (7 ft lb)
- Wheel hub
- For wheel bearing with shoulder
- Note different types Fig. 5 Different wheel hub types
- Pressing out Fig. 3 Pressing out wheel hub
- Pressing in Fig. 4 Pressing in wheel hub
