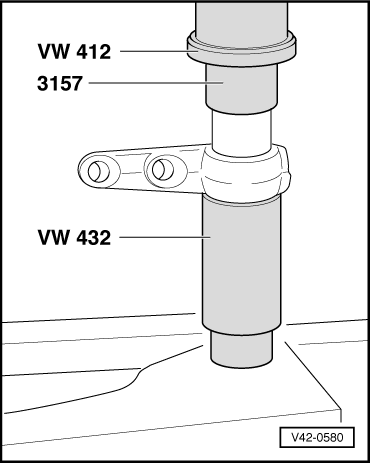

Fig. 4 Pressing bonded rubber bushing into pivot mount

Fig 1: Pressing Bonded Rubber Bushing

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before pressing the bushing into the pivot mount, make sure the collar points toward front of vehicle.

NOTE:

The bushing should be pressed approx. 20 mm (0.79 in.) into pivot mount.
