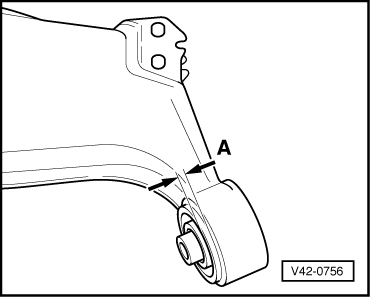

Fig. 2 Bonded rubber bushing installation position

Fig 1: Bonded Rubber Bushing Installation Position

GWWV42-0756

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 3 ± 1 mm (0.12 ± 0.04 in.)
