Stabilizer Bar Link Rod Overview

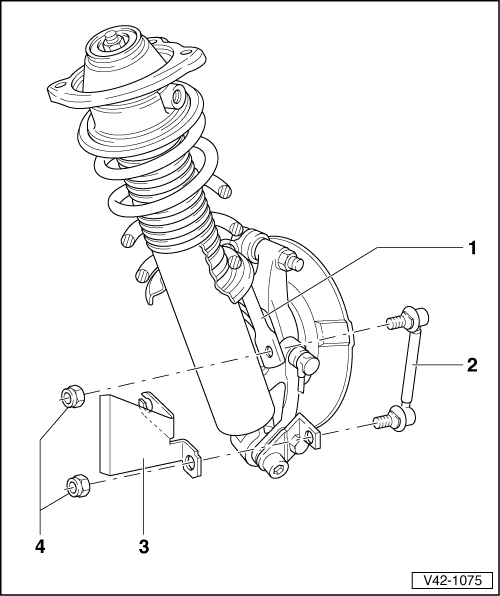

Fig 1: Stabilizer Bar Link Rod Overview
GWWV42-1075Courtesy of AUDI OF AMERICA, LLC
  1. Stabilizer bar
  2. Link rod
    • Connects stabilizer bar to wheel bearing housing
  3. Bracket for ABS wheel speed sensor wire
  4. Self-locking nuts
    • Always replace
    • 45 Nm (33 ft lb)
