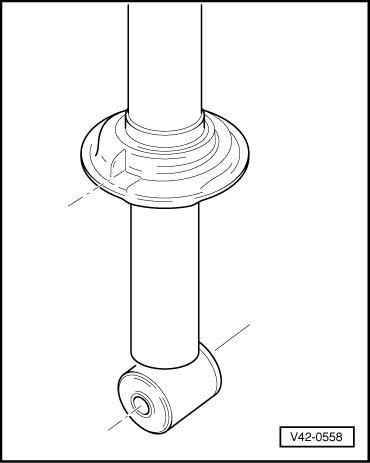

Fig. 2 Installation position of lower spring seat

Fig 1: Installation Position Of Lower Spring Seat

GWWV42-0558

Courtesy of AUDI OF AMERICA, LLC

Coil spring stop must align with shock absorber mounting eye.
