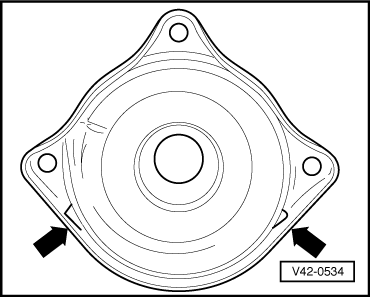

Fig. 1 Installation position of damping ring

Fig 1: Installation Position Of Damping Ring

GWWV42-0534

Courtesy of AUDI OF AMERICA, LLC

Both tabs of the damping ring (arrows) must contact spring seat.
