Rear Suspension Overview, With Stabilizer Bar

CAUTION:

Threaded connections on the rear suspension, used to mount the bonded rubber bushings, must only be tightened with the vehicle resting on its wheels.

WARNING:

Before moving a car from which the driveshaft has been removed, first install an outer joint in place of the driveshaft-otherwise the wheel bearing will be damaged.

NOTE:

Do not attempt to weld or straighten rear wheel suspension components.

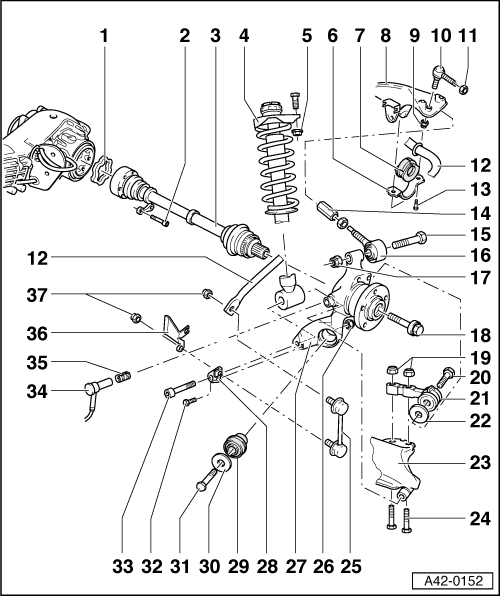

Fig 1: Rear Suspension Overview With Stabilizer Bar
GWWA42-0152Courtesy of AUDI OF AMERICA, LLC
  1. Gasket
    • Always replace
    • Remove protective backing and install on CV joint
  2. Bolt
    • M8: 45 Nm (33 ft lb)
    • M10: 80 Nm (59 ft lb)
  3. Driveshaft
    • Removing and installing DRIVESHAFT
    • Left and right sides identical
    • Repairing DRIVESHAFT
    • Before removing driveshaft, pull wheel speed sensor out slightly
  4. Suspension strut
  5. Self-locking nut
    • Always replace
    • 25 Nm (18 ft lb)
  6. Clamp
  7. Bearing
  8. Crossmember
    WARNING:

    When fastening the crossmember, make sure that the four mounting holes are aligned as concentrically as possible with the studs before aligning the rear axle.

  9. Self-locking nut
    • Always replace
    • 40 Nm (30 ft lb)
  10. Transverse link ball joint
    • Left and right sides different
    • Note angle position at joint
    • Ensure uniform installation depth
  11. Nut
    • 60 Nm (44 ft lb)
  12. Rear stabilizer
  13. Bolt
    • 25 Nm (18 ft lb)
  14. Transverse link threaded sleeve
  15. Bolt
  16. Transverse link bushing end
    • Left and right sides identical
    • Ensure uniform installation depth
  17. Self-locking nut
    • Always replace
    • 200 Nm (148 ft lb)
  18. Bolt and washer assembly/collar bolt
    • Always replace
    • Tighten to 200 Nm (148 ft lb) plus additional 1/4-turn (90°)
    • Loosen and tighten only with vehicle resting on its wheels
  19. Flanged nuts
    • Always replace
    • 110 Nm (81 ft lb)
  20. Self-locking bolt
    • Always replace
    • Tighten to 170 Nm (125 ft lb) plus additional 3/4-turn (135°)
    • Clean threads of adhesive residue in wheel bearing housing with -M14- x 1.5 screw tap
    • Only tighten with vehicle resting on wheels
  21. Support
    • Cross points up when installed
    • Check toe and camber after removing and installing
  22. Washer
  23. Trapezoidal arm
    • Check toe and camber after replacing
    • Check toe after removing and installing
  24. Bolt
  25. Link rod
    • Connects stabilizer to wheel bearing housing
  26. Self-locking nut
    • Always replace
    • 90 Nm (66 ft lb)
    • Only tighten with vehicle resting on wheels
  27. Wheel bearing housing
    • Removing and installing WHEEL BEARING HOUSING
    • When replacing the wheel bearing housing, install sealing sleeve, Part No. 893 927 809 on ABS wheel speed sensor
  28. Bracket
  29. Bonded rubber bushing
  30. Washer
  31. Self-locking bolt
    • Always replace
    • Tighten to 170 Nm (125 ft lb) plus additional 3/4-turn (135°)
    • Clean threads of adhesive residue in wheel bearing housing with -M14- x 1.5 screw tap
    • Only tighten with vehicle resting on wheels
  32. Bolt
    • 20 Nm (15 ft lb)
  33. Cylinder bolt
  34. ABS wheel speed sensor
    • Pull out to remove
    • Before installing, grease all around with brake cylinder paste and then press in by hand to stop
  35. Clamping sleeve
    • Before installing in wheel bearing housing, grease all around with brake cylinder paste
    • Press into wheel bearing housing to stop
  36. Bracket
    • For ABS wheel speed sensor wire
  37. Self-locking nut
    • Always replace
    • 25 Nm (18 ft lb)
