Spring, Removing And Installing, Coil Spring: Installing
Install in reverse order of removal and note the following:
-- Insert the coil spring -1- into the :VAS6274/9 .
- The end of the spring coil on the bottom of the coil spring must rest against -arrow- the :VAS6274/12-3
-- Insert the :VAS6274/12-2 as shown into the coil spring -2-.
-- Press the locking plate -1- outward in direction of -arrow B- (open).
-- Insert the :VAS6274/12-7 with the :VAS6274/5 into the thrust plate and turn 90° until the line marking -4- on the thrust plate is flush with the line marking -3- on the plunger.
-- Pull the plunger into the thrust plate and secure with the locking plate in direction of -arrow A- (close).
-- Remove the :VAS6274/5 .
-- Insert the :VAS6274/12-1 into the coil spring -1-.
- When removing, note the marks applied for the installation position and the locking device bracket positions -2 and 5- to the thrust plates for the corresponding side of the vehicle.
-- Tighten the locking device bolts -3- to the backing plate -4- by hand.
-- Insert the :VAS6274/3 loosely into the :VAS6274/12-7 using the :VAS6274/6 . Tension the coil spring -1- slightly using the :VAS6274/9 while doing so.
-- Insert the 130 mm long centering sleeve -4- all the way.
-- Align the locking device -2- to the mark applied during removal -arrow B- on the coil spring -3-.
-- Tension the coil spring using the :VAS6274/6 and at the same time using the :VAS6274/9 up to the previously applied mark -arrow A-.
-- Make sure when tensioning that the centering sleeve does not slide off of the spindle. Push back if necessary.
- If necessary, the thrust plates must be held in position up to the mark -arrow B- using the :VAS6274/7 .
There is a risk of damaging the threads. on the spindle if handled incorrectly.
- Never use an impact wrench to tighten or loosen the spindle.
- Always turn the spindle using only a commercially available ratchet.
-- Continue to tension the coil spring using the :VAS6274/6 until the coil spring rests loosely on the hydraulic tensioner.
-- Release the tension on the hydraulic tensioner, and remove the centering sleeve and the pretensioned coil spring.
- :VAS6274/8 fixed with :VAS6274/12-5 .

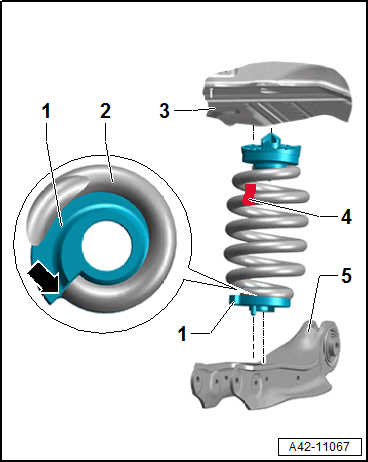

-- Bring the coil spring and the spring plate into the installation position. Refer to Figure.
There is a risk of damaging the threads. on the spindle if handled incorrectly.
- Never use an impact wrench to tighten or loosen the spindle.
- Always turn the spindle using only a commercially available ratchet.
- The tensioner thrust plates must not contact the transverse link when releasing the tension on the coil springs. Turn the thrust plates if necessary.
-- Release the tension on the coil spring with the :VAS6274/6 . Do so by counterholding with the :VAS6274/7 .
- Overview table for when an axle alignment is needed. Refer to NEED FOR AXLE ALIGNMENT, EVALUATING .
