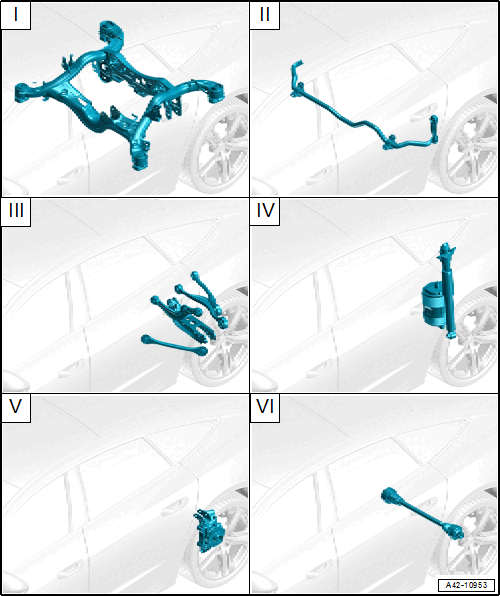

Overview - Rear Axle

Courtesy of AUDI OF AMERICA, LLC

I -  Refer to SUBFRAME

II -  Refer to STABILIZER BAR

III -  Refer to CONTROL ARM, TIE ROD

IV -  Refer to SUSPENSION STRUT, SHOCK ABSORBER, SPRING

V -  Refer to WHEEL BEARING AND TRAILING ARM

VI -  Refer to DRIVE AXLE
