Front Lower Transverse Link, Removing And Installing: Installing

Install in reverse order of removal and note the following:

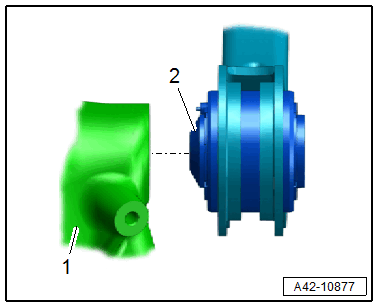

• Installation position. Refer to Figure.

-- Install the threaded connections up to the stop but do not tighten yet.

• Bonded rubber bushings have a limited range of rotation. Only tighten the threaded connections for the suspension when the vehicle is at standard vehicle height.

-- Lifting the wheel bearing in curb weight position (refer to WHEEL BEARING, LIFTING TO CURB WEIGHT POSITION, VEHICLES WITH COIL SPRING ) or at standard vehicle height (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).

• Overview table for when an axle alignment is needed. Refer to NEED FOR AXLE ALIGNMENT, EVALUATING .
