Rear Outer Seat Belt Guide, Removing And Installing, AVANT: Removing

WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seats all the way forward.

-- Press the seat belt guide trim -1- out of the retainers -2 and 3- using the : 3409 and remove the trim.

-- Remove the side cushion. Refer to OVERVIEW - COVER AND CUSHION .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, AVANT .

-- Push the side window noise insulation in the seat belt guide area to the side.

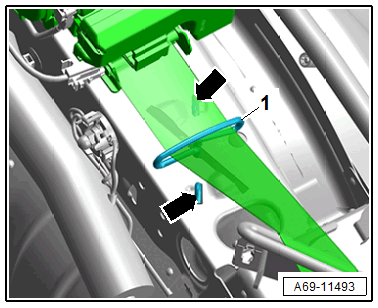

-- Release the catches -arrows- using a flat-head screwdriver one after the other and at the same time turn the seat belt guide -1- counter-clockwise.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat belt guide and guide out the seat belt.

-- Remove the belt from the seat belt guide.

Courtesy of AUDI OF AMERICA, LLC

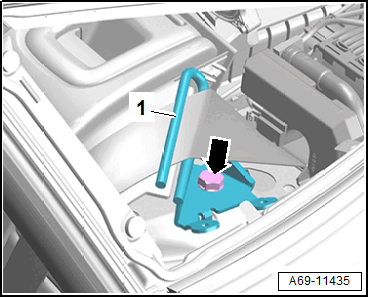

-- Remove the bolt -arrow-.

-- Disengage the seat belt guide -1- from the mount and remove.

-- Equipped on some models on the right side of the vehicle: disconnect the connector for the parking aid warning buzzer.
