Front Seat Belt Guide, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the B-pillar trim panels and move it to the side with the seat belt. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- Move the front seat all the way forward and up.

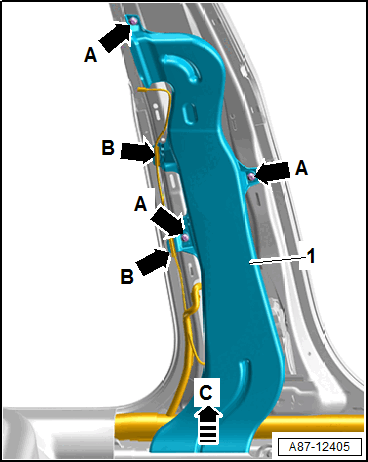

-- Remove the expanding rivets -A arrows-.
-- Unclip the wire on the air duct -B arrows-.
-- Push the carpet slightly to the side and remove the air duct -1- upward -arrow C-.
-- Release the catches -arrows- using a flat-head screwdriver one after the other and at the same time turn the seat belt guide -1- counter-clockwise.
-- Remove the seat belt guide and guide out the seat belt.
