Overview - Passenger Occupant Detection Sensor
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.

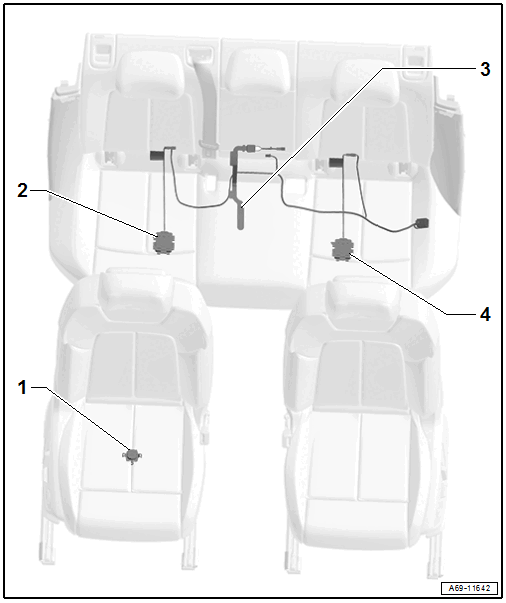

- Passenger Seat Occupant Detection Sensor -G128-
- Removing and Installing. Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING .
- Clip in the seat frame until it clicks into place
- Passenger Side Rear Seat Occupant Detection Sensor -G178-
- Removing and Installing. Refer to SEAT OCCUPANT DETECTION SENSORS -G177-, -G178- AND -G1010-, REMOVING AND INSTALLING .
- Clip in the seat frame until it clicks into place
- Rear Center Seat Occupant Detection Sensor -G1010-
- Removing and Installing. Refer to SEAT OCCUPANT DETECTION SENSORS -G177-, -G178- AND -G1010-, REMOVING AND INSTALLING .
- The passenger occupant detection sensor is bonded to the cushion
- Driver Side Rear Seat Occupant Detection Sensor -G177-
- Removing and Installing. Refer to SEAT OCCUPANT DETECTION SENSORS -G177-, -G178- AND -G1010-, REMOVING AND INSTALLING .
- Clip in the seat frame until it clicks into place
