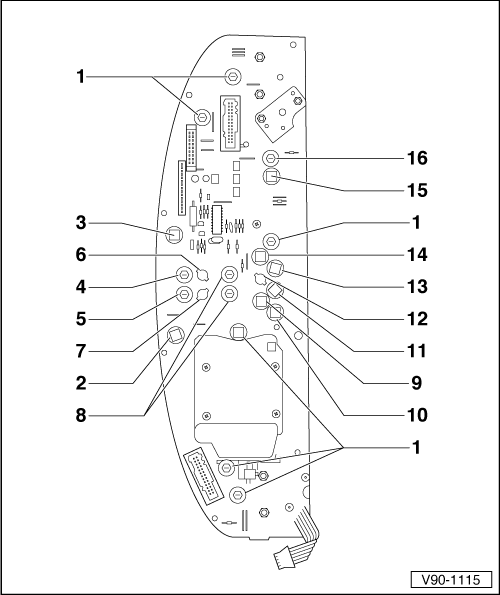

Instrument Cluster Lights, My 92 Through My 94, Identification

Courtesy of AUDI OF AMERICA, LLC

1. Instrument cluster illumination
   • 6 bulbs, 1.1 watt each
2. Right turn signal indicator light
   • 1.2 watt
3. Left turn signal indicator light
   • 1.2 watt
4. Auto-Check system illumination
   • 1.5 watt
5. Auto-Check system illumination
   • 1.5 watt
6. Not used
7. Not used
8. Trip computer illumination
   • 2 bulbs, 1.1 watt each
9. ABS warning light
   • 1.2 watt
10. Not used
11. Parking brake, brake malfunction warning light
    • 1.2 watt
12. OBD malfunction warning light
    • 1.2 watt
13. High beam indicator light
    • 1.2 watt
14. Alternator warning light
    • 2 watt
15. Not used
16. Not used

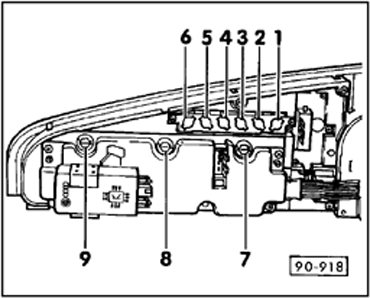

Bulb identification, side panel

Courtesy of AUDI OF AMERICA, LLC

1. Not used
2. Airbag warning light

1.2 watt

3 -  Engine check light

1.2 watt

4 -  Not used

5 -  Seat belt warning light

1.2 watt

6 -  Not used

7 -  Analog clock illumination

1.1 watt

8 -  Oil temperature gauge illumination

1.1 watt

9 -  Oil pressure gauge illumination

1.1 watt
