Acceleration Switch

WARNING:

Switch ignition off when removing or installing.

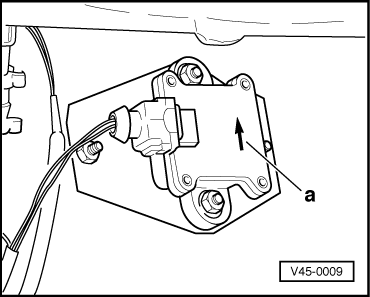

Installation location: under left rear seat bench

Arrow -a- on the switch points toward the front of the vehicle.

GWWV45-0009Courtesy of AUDI OF AMERICA, LLC

The acceleration switch is a mercury switch activated during deceleration. During ABS-assisted braking, the switch provides additional stabilization.

NOTE:

The acceleration switch has been eliminated starting with 07.92 production.
