Overview - Rear Wheel Housing Liner

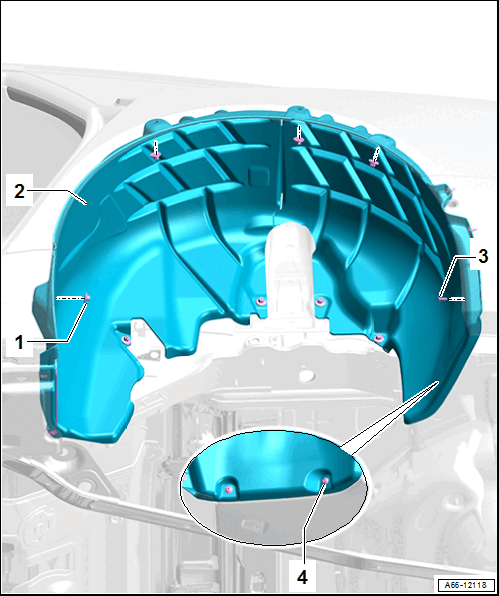

GWWA66-12118Courtesy of AUDI OF AMERICA, LLC
  1. Nut
    • Quantity: 8
    • 2 Nm
  2. Wheel Housing Liner
    • Rear
  3. Bolt
    • Quantity: 3
    • 2 Nm
  4. Bolt
    • Right side: only for models with TDI engine
    • Quantity: 2
    • 2 Nm
