Overview - Front Wheel Housing Liner

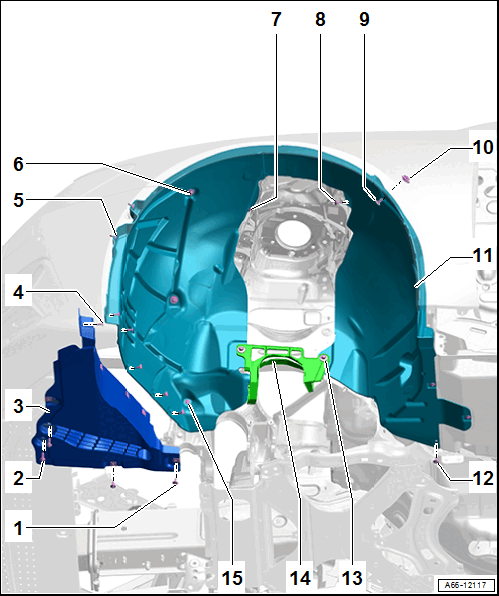

GWWA66-12117Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 20 Nm
  2. Bolt
    • Quantity: 2
    • 12 Nm
  3. Wheel Spoiler
  4. Clip
  5. Bolt
    • Quantity: 7
    • 2 Nm
  6. Nut
    • Quantity: 4
    • 2 Nm
  7. Clip
  8. Clip
  9. Bolt
    • 2 Nm
  10. Bracket
    • For the wheel housing liner to the fender
  11. Wheel Housing Liner
    • Front
  12. Bolt
    • Quantity: 3
    • 2 Nm
  13. Nut
    • Quantity: 2
    • 2 Nm
  14. Drive Axle Cover
  15. Bolt
    • 7.5 Nm
