Overview - Underbody Trim Panels

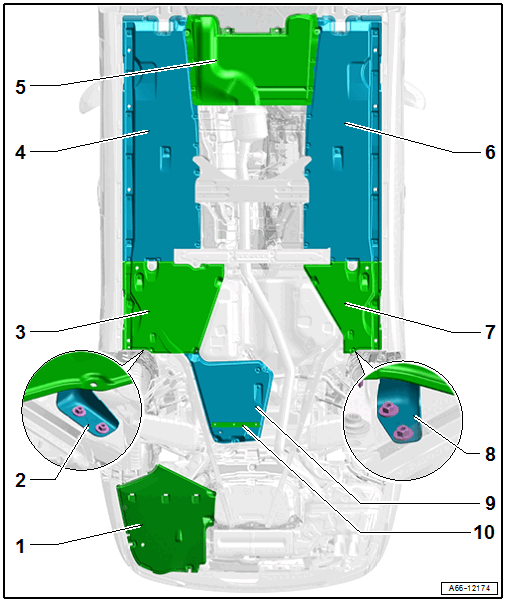

GWWA66-12174Courtesy of AUDI OF AMERICA, LLC
  1. Rear Underbody Trim Panel
    • Tightening Specifications:
      • Nuts: 2 Nm
      • Bolts: 2 Nm
  2. Center Underbody Trim Panel Bracket
    • Right
    • Tightening Specifications
      • Nuts: 8 Nm
  3. Center Underbody Trim Panel
    • Right
    • Tightening Specifications:
      • Nuts: 2 Nm
      • Bolts: 2 Nm
  4. Front Underbody Panel
    • Right
    • Tightening Specifications:
      • Nuts: 2 Nm
      • Bolts: 2 Nm
  5. Tunnel Underbody Trim Panel
    • Tightening Specifications:
      • Nuts: 2 Nm
      • Bolts: 2 Nm
  6. Front Underbody Panel
    • Left
    • Tightening Specifications:
      • Nuts: 2 Nm
      • Bolts: 2 Nm
  7. Center Underbody Trim Panel
    • Left
    • Tightening Specifications:
      • Nuts: 2 Nm
      • Bolts: 2 Nm
  8. Center Underbody Trim Panel Bracket
    • Left
    • Tightening Specifications
      • Nuts: 8 Nm
  9. Rear Axle Underbody Trim Panel
    • Expanding Rivet
  10. Spoiler Lip
    • Expanding Rivet
