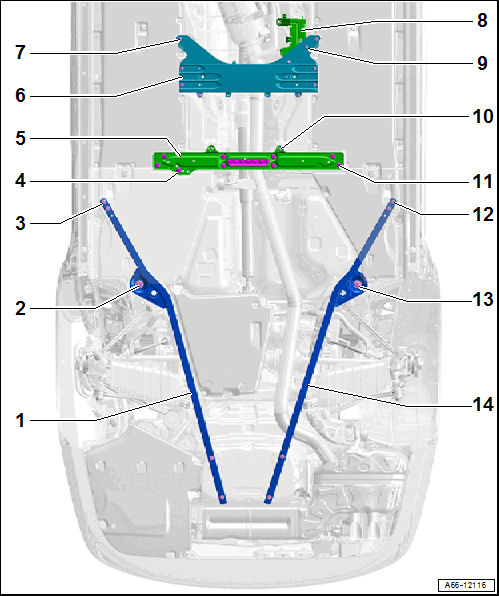

Overview - Underbody CROSSMEMBERS
- Diagonal Brace
- Right
- Removing and Installing. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .
- Bolt
- Replace after removing.
- Tightening specification. Refer to OVERVIEW - SUBFRAME .
- Bolt
- Replace after removing.
- Quantity: 4
- 50 Nm + 90°
- Bolt
- Tightening specification. Refer to OVERVIEW - FUEL TANK .
- Rear Tunnel Brace
- Front Tunnel Brace
- Bolt
- Quantity: 8
- 55 Nm
- Bracket
- For equipment versions with Particulate Sensor -G784- /NOx Sensor Control Module 2 - J881-
- Bolt
- Quantity: 2
- 5 Nm
- Bolt
- Quantity: 2
- 2 Nm
- Bolt
- Quantity: 8
- 55 Nm
- Bolt
- Replace after removing.
- Quantity: 4
- 50 Nm + 90°
- Bolt
- Replace after removing.
- Tightening specification. Refer to OVERVIEW - SUBFRAME .
- Diagonal Brace
- Left
- Removing and Installing. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING .
