Special Tools

Special tools and workshop equipment required

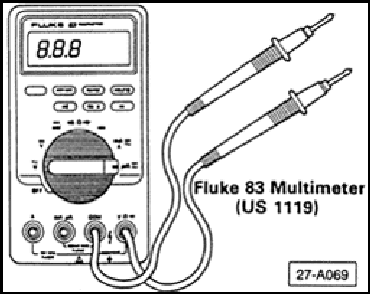

• Digital multimeter Fluke 83 (US 1119)
  Fig 1: Digital multimeter Fluke 83

  Courtesy of AUDI OF AMERICA, LLC

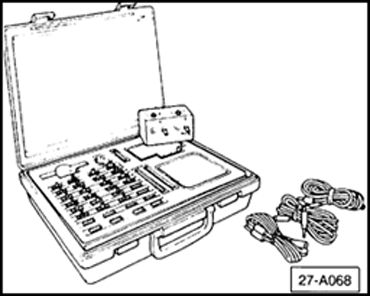

• Connector test kit: VW 1598
  Fig 2: Connector test kit

  Courtesy of AUDI OF AMERICA, LLC

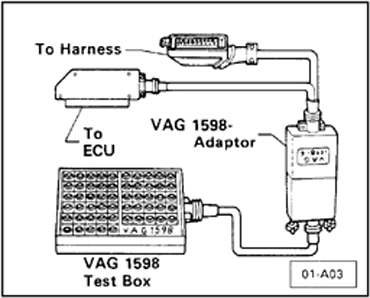

• Test box: 1598  with harness adapter: 1598/4

  Courtesy of AUDI OF AMERICA, LLC

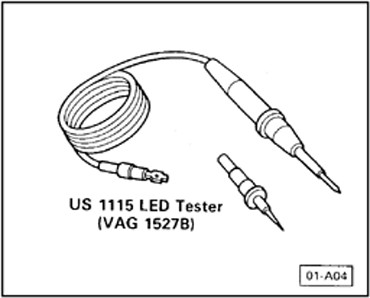

• Voltage tester: VAG1527B

  Courtesy of AUDI OF AMERICA, LLC
