Seat Covers: Notes

Special tools and workshop equipment required

• Upholstery pliers:VAG1634

Front Seat

-- Remove seat. Refer to FRONT SEAT, MANUAL .

-- Remove seat back from seat frame. Refer to FRONT BACKREST ASSEMBLY OVERVIEW .

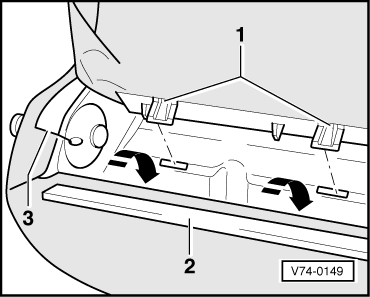

-- Unclip cover -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out cover reinforcement -2-.

-- Unhook tensioning wire -3-.

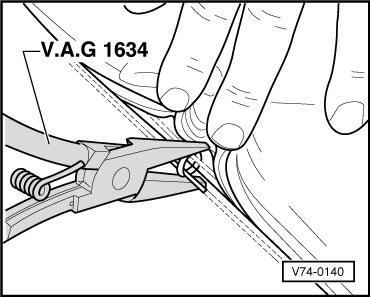

-- Bend open upholstery hooks -1-.

Courtesy of AUDI OF AMERICA, LLC

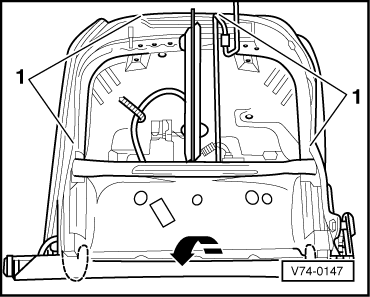

-- Unhook seat cover.

-- Fold over seat cover.

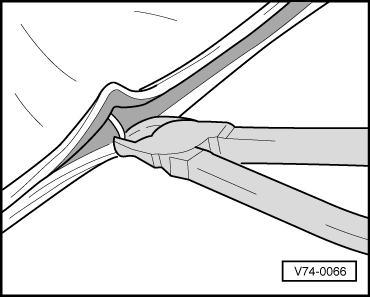

-- Cut clips.

Courtesy of AUDI OF AMERICA, LLC

-- Remove seat cover.

-- Take out seat upholstery.

-- Remove old clips.

Courtesy of AUDI OF AMERICA, LLC

-- Install new clips at same points with :VAG1634  or equivalent.
