Rear Seat Backrest Heater Element, Checking

Courtesy of AUDI OF AMERICA, LLC

	Rear Seat Backrest Heater Element, Checking Continuity

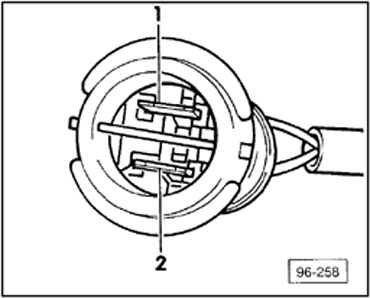

	-- Remove rear seat bench.-- Disconnect 2-plug connector (green) under rear seat bench.-- Set multimeter to measure resistance, (Ω) and connect test leads between terminals 1 and 2 of connector. Must read approximately 1.2 Ω.
	Specified value NOT OK
	-- Replace rear seat backrest heat element.
					End
