Heated Seat Circuit Breaker, Checking

Courtesy of AUDI OF AMERICA, LLC


	Heated Seat Circuit Breaker -S79-, Checking Continuity

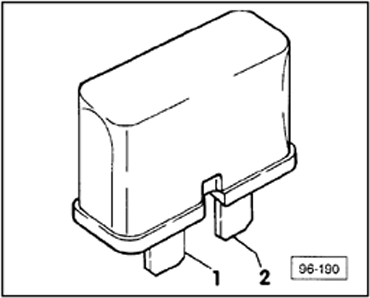

	-- Remove heated seat circuit breaker from auxiliary relay panel I (plenum chamber, left side), position A5.-- Set multimeter Fluke 83 (US 1119) to measure resistance and connect test leads between contacts 1 and 2 of circuit breaker. Must read approx. 0 Ω (continuity).
	Specified reading NOT OK

	-- Replace heated seat circuit breaker. Note: Circuit breaker will open when over-loaded, and close when cooled down.

					End
