Heated Seat Backrest Element, Checking

Courtesy of AUDI OF AMERICA, LLC


	Heated Seat Backrest Element, Checking Continuity

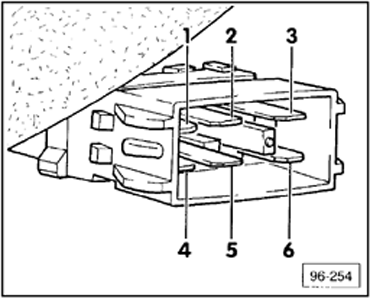

	-- Disconnect 6-point connector (green) from under front seat.-- Unclip connector from seat frame.-- Set multimeter to measure resistance (Ω) and connect test leads between terminals 3 and 6 of connector. Must read approximately 1.2 Ω.
	Specified value NOT OK

	-- Replace heated backrest element.

					End
