Heated Rear Seat Switch, Seat Bottom Element, Checking

Courtesy of AUDI OF AMERICA, LLC

	Heated Rear Seat Switch, Seat (Bottom) Element, Checking Continuity

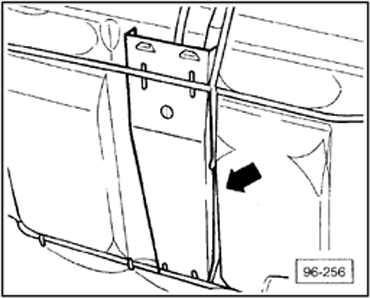

	Note: Switch is located under rear seat bench, and is operated by body weight on seat bench. -- Remove rear seat bench-- Disconnect 4-point plug (green) under rear seat-- Set multimeter to Ohm range and connect test leads between terminals 1 and 4 of connector. Must read approximately 1.2 Ω. -- If specified value NOT OK, remove heated rear seat switch from under seat bench -arrow-.
					Go to next page

Courtesy of AUDI OF AMERICA, LLC

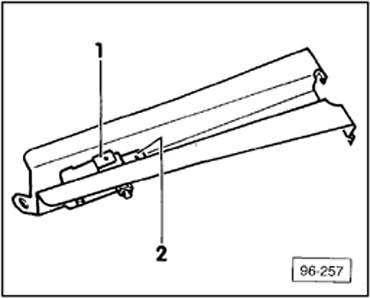

	-- Connect multimeter test leads between terminals 1 and 2 of switch.-- Turn switch ON.-- Must read 0 Ω (continuity).
	Specified values NOT OK					Specified value OK
	-- Replace switch for heated rear seat.						-- Replace heat elements for rear seat.
		End						End
