Seats Will Not Adjust In One Direction

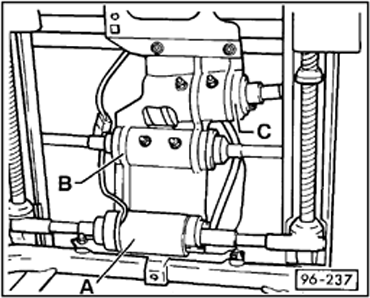

A - Fore/aft adjustment motor

Courtesy of AUDI OF AMERICA, LLC

B - Rear height adjustment motor

C - Front height adjustment motor

D - Backrest adjustment motor (not shown)

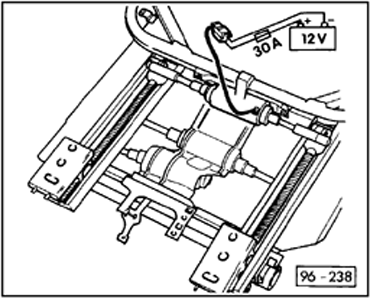

Checking adjustment motors

Courtesy of AUDI OF AMERICA, LLC

Adjustment motors, checking

-- Remove seat from vehicle POWER FRONT SEAT -- Disconnect 2-point connector at adjustment motor being checked-- Briefly connect a fused (30 amp) outside power supply alternately to the 2-point connector (as shown)

Specified result: -- Adjustment motor moves smoothly in both directions

Specified results NOT OK

Specified results OK

-- Replace malfunctioning adjustment motor

Go to A next chart

End

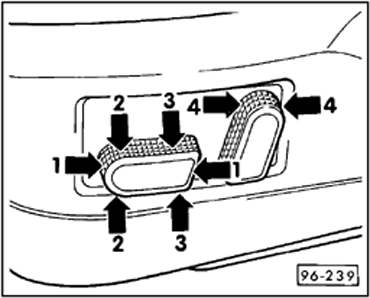

Checking adjustment switch

Courtesy of AUDI OF AMERICA, LLC

Adjustment switch, checking

-- Disconnect 2-point connector for seat adjustment motors-- Set multimeter (Fluke 83 or equivalent) to measure resistance (Ω) and connect test leads between terminals of 2-point connector

Must read 0 Ω (continuity)

-- Operate switch for malfunctioning seat adjustment in both directions

Must read ∞ Ω (no continuity) each time

One or more specified readings NOT OK

Specified readings OK

-- Check wiring for open or short circuits according to wiring diagram, repair as necessary or replace switch

End
