Auto-Check System, Coding Switch Positions
Example:
62 = 6 cyl., USA/gasoline

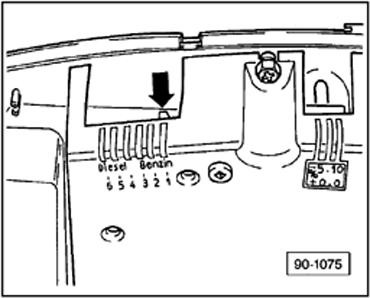

-- Adjust coding switch (arrow) to position 2 (USA) or position 3 (Canada).
| Switch position | Country/Fuel |
|---|---|
| 1 | German speaking countries/gasoline |
| 2 | USA/gasoline |
| 3 | All other countries including Canada/gasoline |
| 4 | German speaking countries/diesel |
| 5 | USA/Diesel |
| 6 | All other countries including Canada/Diesel |
