Rear Power Windows Assembly

NOTE:

Door component disassembly Description and Operation

Refer to appropriate wiring diagram for electrical repairs

Individual mechanical portions of window regulator mechanism are available as replacement parts

After removal and installation of door component carrier or window regulator door glass height must be adjusted

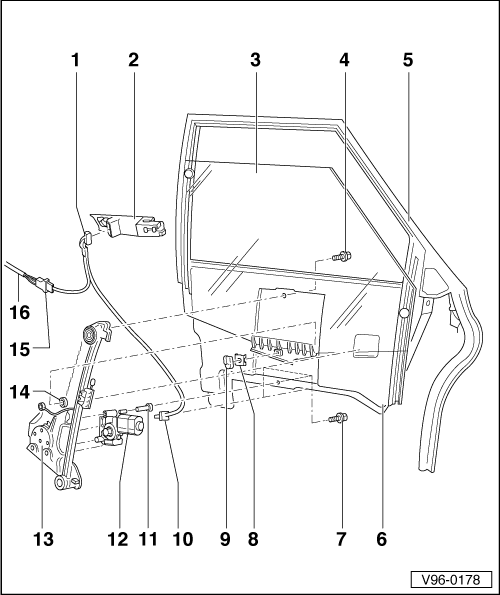

GWWV96-0178Courtesy of AUDI OF AMERICA, LLC
  1. Left rear window switch -E52-
  2. Inner door opening mechanism
  3. Door glass, left rear
  4. Screw, window regulator
    • Tightening torque: 10 Nm (7ft lb)
  5. Window guide
  6. Door component carrier
  7. Screw
    • Tightening torque: 10 Nm (7ft lb)
  8. Washer
  9. Locking clip, window glass
  10. 2-point connector, left rear window regulator
  11. Torx screws
    • Tightening torque: 4.5 Nm (40 in lb)
  12. Left rear door window motor -V26-
  13. Window regulator assembly
  14. Washer
  15. 2-point connector for window switch, left rear
    • Remove door trim for access
  16. Wiring harness
    • Refer to appropriate wiring diagram
