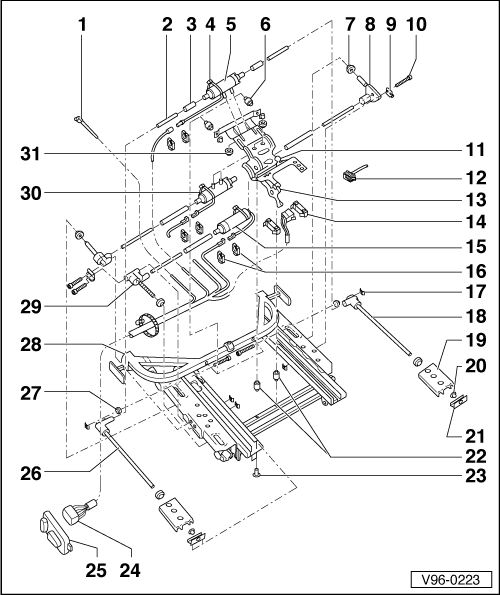

Power Seats, Mechanical Components Overview
NOTE:
Installation location of seat memory control unit, voltage supply relay POWER SEAT, ELECTRICAL COMPONENTS OVERVIEW
- 2-point connector for seat adjustment
- Drive shaft, adjuster element
- Drive shaft, guard tube
- Tie wrap
- Motor, fore/aft adjustment
- Removing and installing ADJUSTMENT MOTORS
- Rubber buffer
- Fore/aft motor mount
- Stop buffer
- Actuator, rear height adjustment
- Removing and installing SEAT ADJUSTMENT ACTUATORS
- Spacer
- Mounting screws, actuator
- Nut, motor mount
- Plug connector
- Refer to appropriate wiring diagram for pin location
- Motor mount
- Bracket
- For plug connector -12-
- Motor, front height adjustment
- Removing and installing ADJUSTMENT MOTORS
- Clip
- For plug connector -12-
- Circlip
- Actuator, right side,
- Fore/aft adjustment
- Seat runners
- Actuator with seat runners SEAT ADJUSTMENT ACTUATORS
- Bushing
- Spindle plate
- Buffers, motor mount
- Rivet
- Secures spindle plate -21-
- Plug connector, switch unit
- Refer to appropriate wiring diagram for pin location
- Switch, seat adjuster
- Actuator, left side
- Fore/aft adjustment
- Removing and installing SEAT ADJUSTMENT ACTUATORS
- Mounting ring
- Lower seat frame with seat runner guides
- Removing and installing seat SEAT ADJUSTMENT ACTUATORS
- Actuator, front height adjustment
- Removing and installing SEAT ADJUSTMENT ACTUATORS
- Motor, rear height adjustment
- Removing and installing ADJUSTMENT MOTORS
- Nut, motor mount
