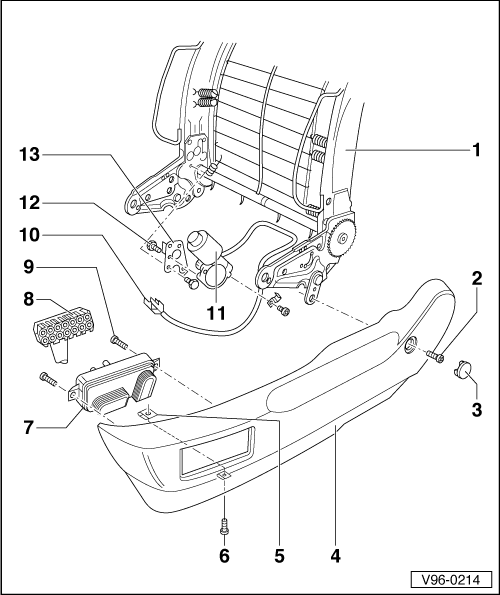

Power Backrest Assembly Overview
- Backrest frame
- Removing and installing BACKREST
- Mounting screws, side trim
- Screwed into backrest adjustment bracket
- Cover cap
- Pry off
- Side trim
- Clip
- Mounting screw
- For side trim -4-
- Seat adjustment switch
- Removing and installing SEAT SIDE TRIM AND ADJUSTMENT SWITCH
- Plug connector
- For switch -7-
- Refer to appropriate wiring diagram for pin location
- Mounting screw
- For switch -7-
- 2-point connector
- Refer to appropriate wiring diagram for pin locations
- Motor, backrest adjustment
- Removing and installing BACKREST ADJUSTMENT MOTOR
- Screw
- Bracket
- For backrest adjustment
