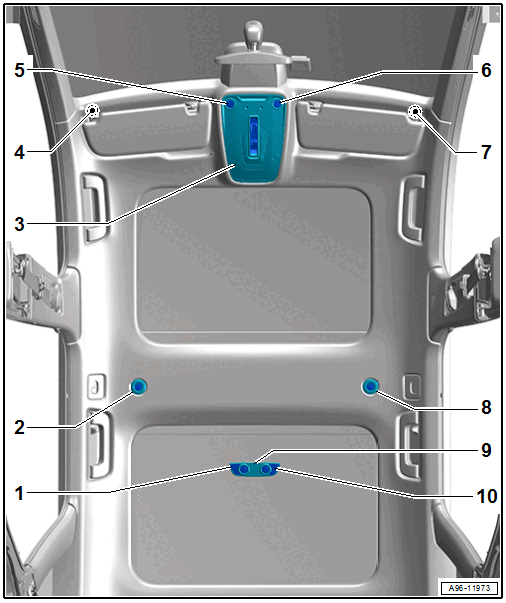

Component Location Overview - Controls In Roof Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Right Rear Reading Lamp Switch -E455-
- For equipment versions without rear panoramic roof
- Integrated in the rear interior lamp
Right Rear Reading Lamp Switch -E455-
- For equipment versions with rear panoramic roof
- With Right Rear Reading Lamp Switch -E455-
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITH REAR PANORAMIC ROOF .
Front Roof Module -WX3-
- Overview. Refer to OVERVIEW - FRONT INTERIOR LAMPS .
Front Passenger Vanity Mirror Lamp Contact Switch -F148-
- Integrated in the sun visor pivot bearing
- Cannot be replaced separately
- If faulty, replace the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .
Right Front Reading Lamp Button -E634-
- Integrated in the front roof module
Left Front Reading Lamp Button -E633-
- Integrated in the front roof module
Driver Vanity Mirror Lamp Contact Switch -F147-
- Integrated in the sun visor pivot bearing
- Cannot be replaced separately
- If faulty, replace the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .
Left Rear Reading Lamp Switch -E454-
- For equipment versions with rear panoramic roof
- With Left Rear Reading Lamp Switch -E454-
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITH REAR PANORAMIC ROOF .
Rear Interior Lamp -WX2-
- For equipment versions without rear panoramic roof
- Replace the clip after removing
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Left Rear Reading Lamp Switch -E454-
- For equipment versions without rear panoramic roof
- Integrated in the rear interior lamp
