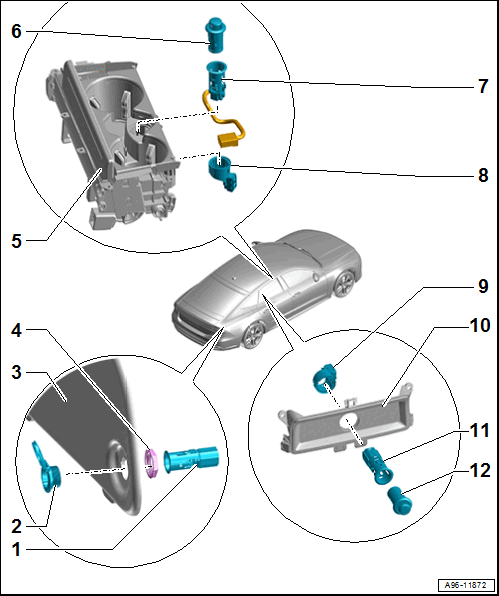

Overview - Cigarette Lighter, 12 V Socket

Courtesy of AUDI OF AMERICA, LLC

1. 12 V Socket 3 -U19-
   • Component location: luggage compartment side trim panel
   • Removing and Installing. Refer to 12 V Socket 3 -U19-, REMOVING AND INSTALLING .
   • Replacing. Refer to 12 V Socket 3 -U19-, REPLACING .
2. Mount with Cover
   • For the 12 V Socket 3 -U19-
3. Luggage Compartment Side Trim Panel Cover
4. Nut
   • 2 Nm
5. Cup holder
   • For Cigarette Lighter -U1- /12 V Socket -U5-
6. Cigarette Lighter/Blind Cover
7. Cigarette Lighter -U1- /12 V Socket -U5-
   • Removing and Installing. Refer to Cigarette Lighter -U1- /12 V Socket -U5-, REMOVING AND INSTALLING .
8. Cigarette Lighter Illumination Bulb -L28-
   • Removing and Installing. Refer to Cigarette Lighter Illumination Bulb -L28-, REMOVING AND INSTALLING .
9. Socket Illumination Bulb -L42-
   • For the Rear Cigarette Lighter -U9- /12 V Socket 2 -U18-
   • Removing and Installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
10. Socket Trim
    • Equipped on some models: with Rear Cigarette Lighter -U9- /12 V Socket 2 -U18-
11. Rear Cigarette Lighter -U9- /12 V Socket 2 -U18-
    • Removing and Installing. Refer to Rear Cigarette Lighter -U9- /12 V Socket 2 -U18-, REMOVING AND INSTALLING .
12. Blind Cover
