Warning Light Housing, Side Panel: Removing

-- Remove instrument cluster INSTRUMENT CLUSTER .

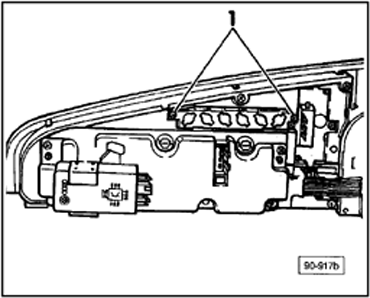

-- Remove screws -1-.

GWWUS90-917B000Courtesy of AUDI OF AMERICA, LLC

-- Remove warning light housing.
