Printed Circuit: Removing

-- Remove instrument cluster INSTRUMENT CLUSTER .

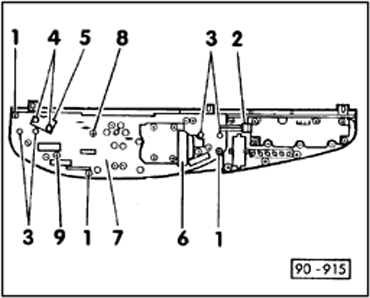

-- Remove screws -1-, -2- and -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove cover -4-.

-- Remove screws -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove connector -2- from side panel.

-- Remove nuts -3-.

-- Remove nuts -4- and washers.

-- Remove instrument panel light dimmer switch -5-.

-- Remove screws -8- and -9-.

-- Unlock latch -6- and hold cover.

-- Remove printed circuit -7-.
