Instrument Cluster: Removing
-- Obtain radio security code.
-- Disconnect battery ground strap.
-- Disconnect airbag voltage supply connector.
Located in passenger footwell area above electronic control box
CAUTION:
Always disconnect airbag voltage supply connector before working on any airbag or steering column component.
-- Remove steering wheel and steering column switch assembly STEERING COLUMN SWITCHES .

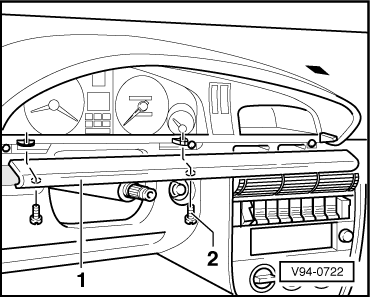

-- Remove screws -2- and remove cover strip -1-.
-- Remove mounting screws (arrows).
-- Carefully pull instrument cluster from instrument panel.
-- Disconnect electrical connectors and remove instrument cluster.
