Instrument Cluster: Installing
Install in reverse order of removal.
-- Recode radio.
Emergency flasher relay -J2-, installation position
Relay (arrow) is located behind the instrument cluster and is attached to the instrument panel with a clip.

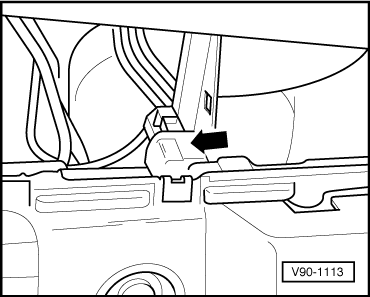

Warning buzzer -H3-, or radio/parking light warning buzzer -J152-, installation position
Warning buzzer (arrow) is mounted on the side panel of the instrument cluster and is attached with a clip.
