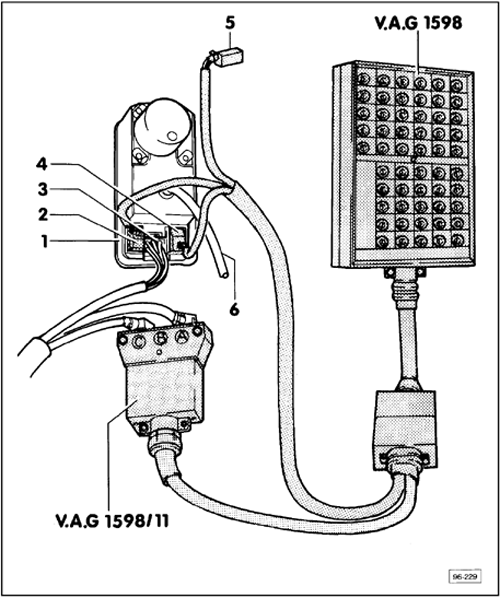

VAG 1598/11 Adapter Harness, Connecting To Control Module

Courtesy of AUDI OF AMERICA, LLC

1. Central locking/alarm system/interior light delay control module -V94-
2. 12-point connector
3. 6-point connector, voltage supply (B+)
4. 16-point connector
5. Not connected
6. Vacuum hose
