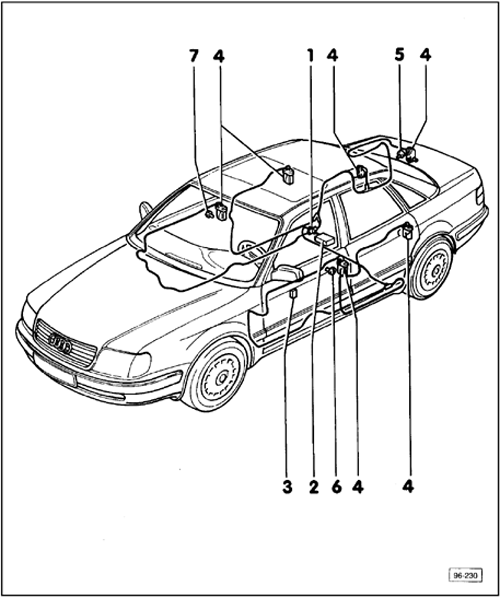

Central Locking System Overview

GWWUS96-230Courtesy of AUDI OF AMERICA, LLC
  1. Vacuum hose junction
  2. Central locking/alarm system/interior light delay control module -V94-
  3. Door lock switch -E150-
  4. Actuators
  5. Lock cylinder switch, trunk
  6. Lock cylinder switch, driver's door
  7. Lock cylinder switch, passenger's door
