Overview - Electric Coolant Pump, AUDI A8/Q7/Q8

WARNING: This page is about a different car, the 2024 Audi Q7 and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

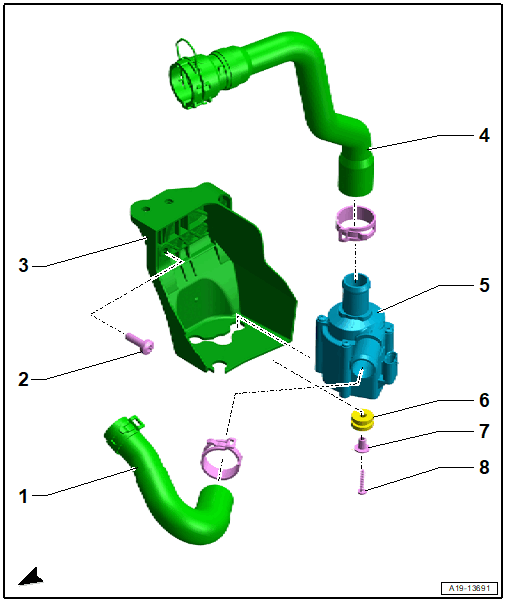

GWWA19-13691Courtesy of AUDI
  1. Coolant Hose
  2. Bolt
    • 9 Nm
  3. Bracket
    • For the Coolant Recirculation Pump -V50-
  4. Coolant Hose
  5. Coolant Recirculation Pump -V50-
  6. Rubber Bushing
  7. Spacer Sleeve
  8. Bolt
    • 1.5 Nm
